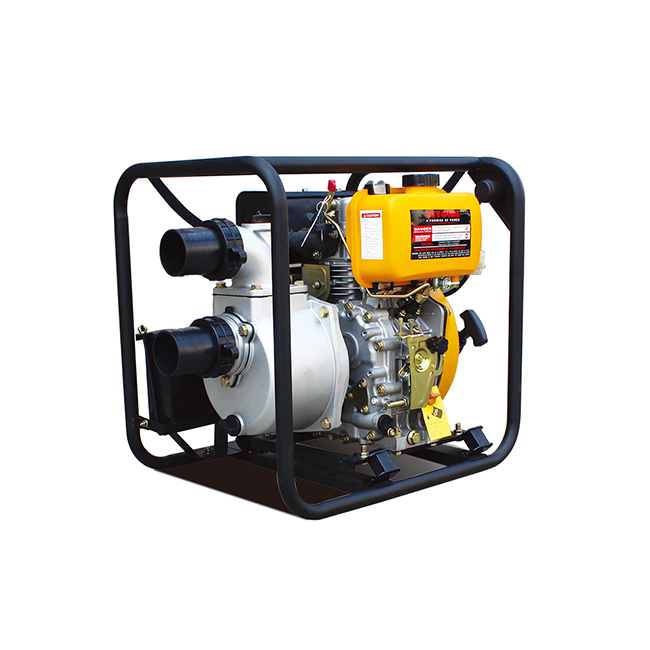

| DIESEL WATER PUMP | |||
| Model | DY50C(LE) | DY80C(LE) | DY100C(LE) |
| Suction,Discharge Dia mm(inch) | 50(2") | 80(3") | 100(4") |
| Cont.Capacity(L/min) | 600(36M3/H) | 1000(60M3/H) | 1600(96M3/H) |
| Total Head | 26M | 28M | 27M |
| Engine speed | 3600RPM | ||
| Max.Suction Head(m) | 7 | ||
| Model | DY170F(E) | DY178F(E) | DY186FA(E) |
| Engine continuous Output(hp) | 4.5HP | 6.5HP | 10HP |
| Displacement(cc) | 211CC | 296CC | 418CC |
| Fuel Tank Capacity(L) | 2.5L | 3.5L | 5.5L |
| Lub.Oil Capacity(L) | 0.8L | 1.1L | 1.5L |
| G.W(KG) | 38KGS | 55KGS | 72KGS |
| DIA L*W*H(mm) | 525*430*545MM | 590*490*580MM | 670*490*620MM |
