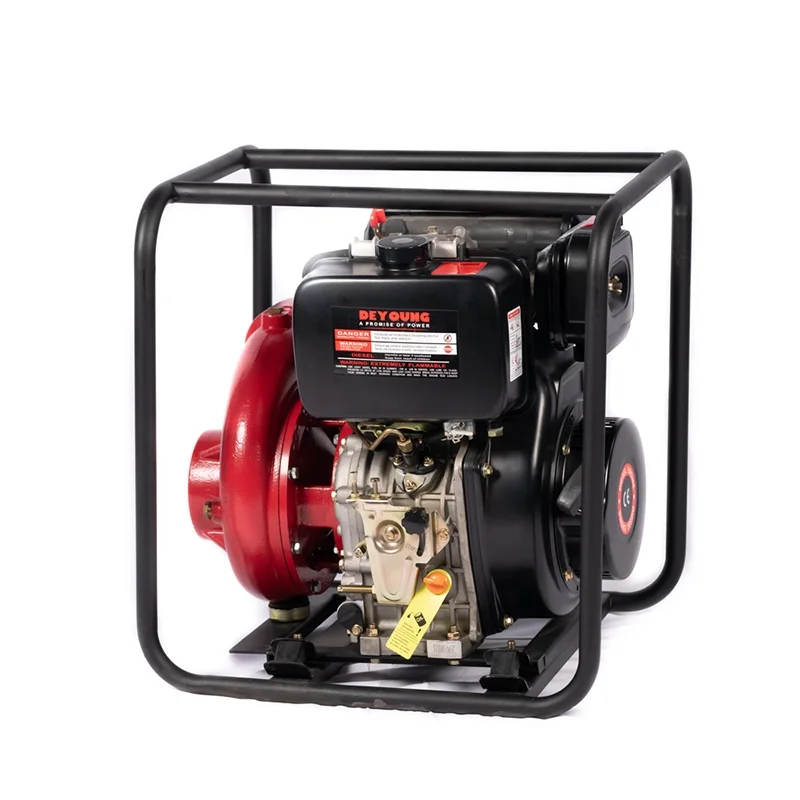

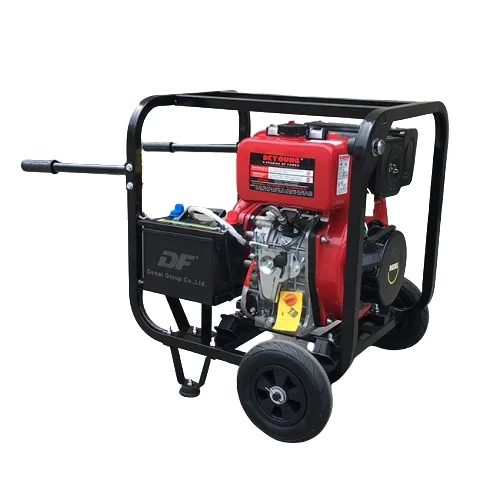

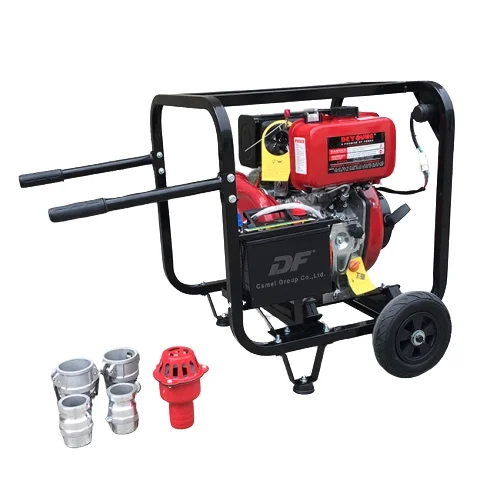

| CAST IRON HIGH PRESSUE DIESEL WATER PUMP | |
| Model | WP20DC(E) |
| Suction Dia mm(inch) | 50(2") |
| Discharge Dia mm(inch) | 50(2") |
| Discharge Capacity(L/min) | 500(30m3/h) |
| Impeller Size(mm) | 175 |
| Lift Head Max.(m)(psi) | 75(110) |
| Model | DY178F(E) |
| Engine Power(hp) | 6 |
| Engine Speed(rpm) | 3600 |
| Engine displacement(cc) | 296 |
| Fuel Tank Capacity(L) | 3.5 |
| N.W(KG) | 51 |
| Dimension(L*W*H)(mm) | 580*480*590 |
