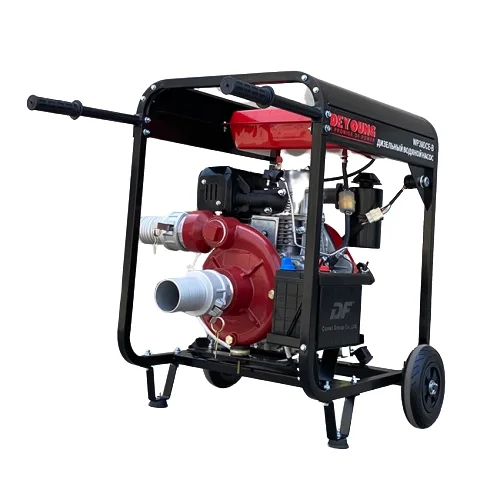

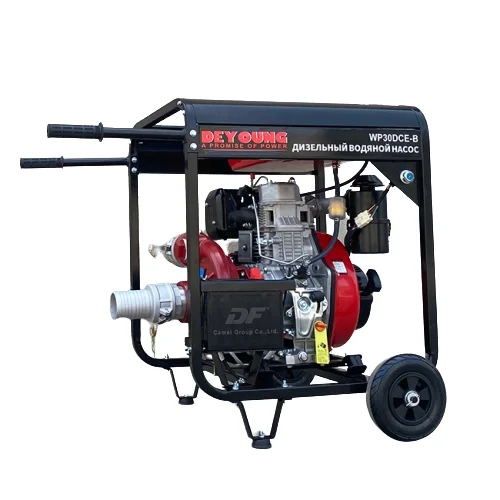

| CAST IRON HIGH PRESSUE DIESEL WATER PUMP | |
| Model | WP30DC(E)-B |
| Suction Dia mm(inch) | 80(3") |
| Discharge Dia mm(inch) | 80(3") |
| Discharge Capacity(L/min) | 700(72M3/h) |
| Impeller Size(mm) | 208 |
| Lift Head Max.(m)(psi) | 90(150) |
| Model | DY192F(E) |
| Engine Power(hp) | 14 |
| Engine Speed(rpm) | 3600 |
| Engine displacement(cc) | 498 |
| Fuel Tank Capacity(L) | 5.5 |
| N.W(KG) | 85 |
| Dimension(L*W*H)(mm) | 660*485*620 |
