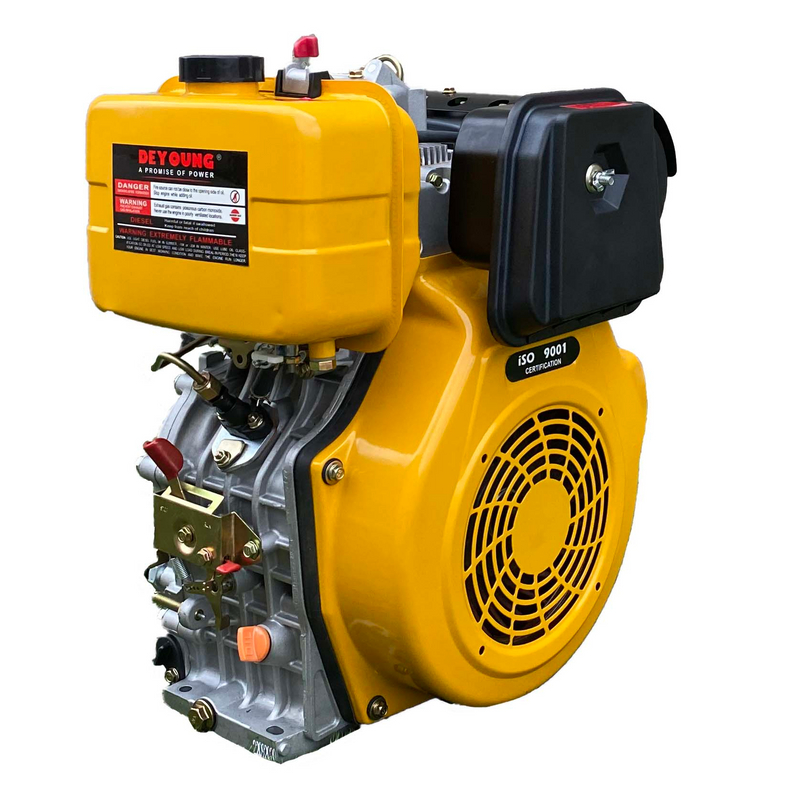

DY1100FE

Quantity:

Inquiry

View More

Product Description

Model	DY1100F(E)
Type	Single-cylinder,Vertical,4-stroke,Air-cooled Diesel Engine
Combustion System	Direct Injection
Bore*Stroke(mm)	110*85
Displacement(cc)	663
Engine Speed	3000	3600
Rated Power(kw)	9.5(13hp)	11(14.9hp)
Max. Power(kw)	10(14hp)	12(16hp)
Start System	Electric Start
Oil Capacity(L)	1.65
Fuel	0#in summer,-10# or -20# in winter light diesel
Lub.oil	CD grade or SAE10W-30,SAE15W-40
Fuel Consumption(g/kwh)	275	280
Electric System	12V-36AH
Fuel Tank Capacity(L)	5.5L
Dim LxWxH(mm)	600530740
N.W/G.W(kgs)	56/58
