| DIESEL ENGINE SPECIFICATION |

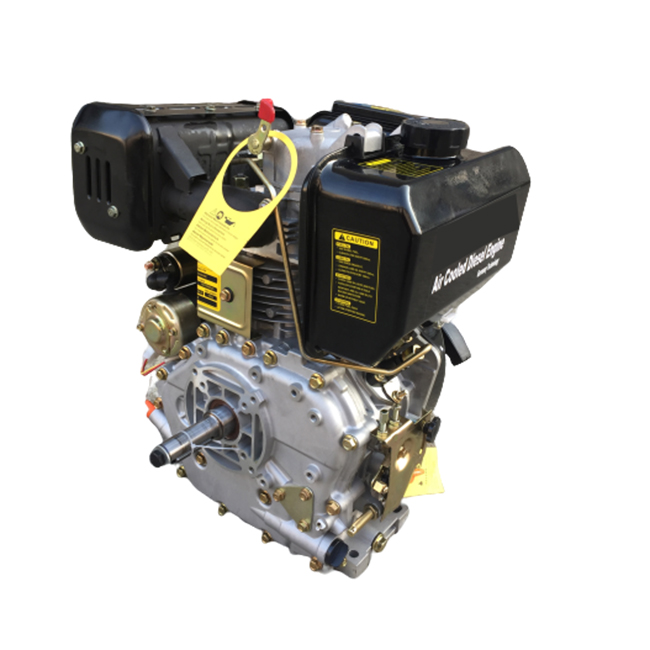

| Model | DY178F(E) | DY186FA(E) | DY188F(E) | DY192F(E) |
| Engine Type | Single Cylinder,Vertical,4 Stroke,Air Cooled |
| Bore*Stroke | 78X62mm | 86X72mm | 88X75mm | 92X75MM |
| Displacement | 296 cc | 418 cc | 456cc | 498CC |
| Engine Speed | 3000/3600RPM |
| Continuous Output | 5.0HP/5.5HP | 8.0HP/9.0HP | 9.0/10.0HP | 11HP/12HP |
| Max.Output | 5.5HP/6.0HP | 8.8HP/10.0HP | 10.0HP/11HP | 12HP/13HP |
| Starting System | Manual start Or Electric start |
| Fuel/Lub.Oil | 0#In Summer,-10# OR -20# In winter |
| Lub. Oil | CD Grade OR SAE10W-30,SAE15W-40 |
| Electric Starting System | 12V-24AH |
| Fuel Tank Capacity | 3.5L | 5.5L |
| Lub.Oil Capacity | 1.1L | 1.65L | 1.65L | 1.7L |
| Crankshaft | keyway, taper, thread, conic |
| G.W | 35KGS | 50KGS | 50KGS | 52KGS |
| DIM L*W*H | 470*420*520mm | 510*455*515MM | 510*455*515MM | 515*475*565mm |
