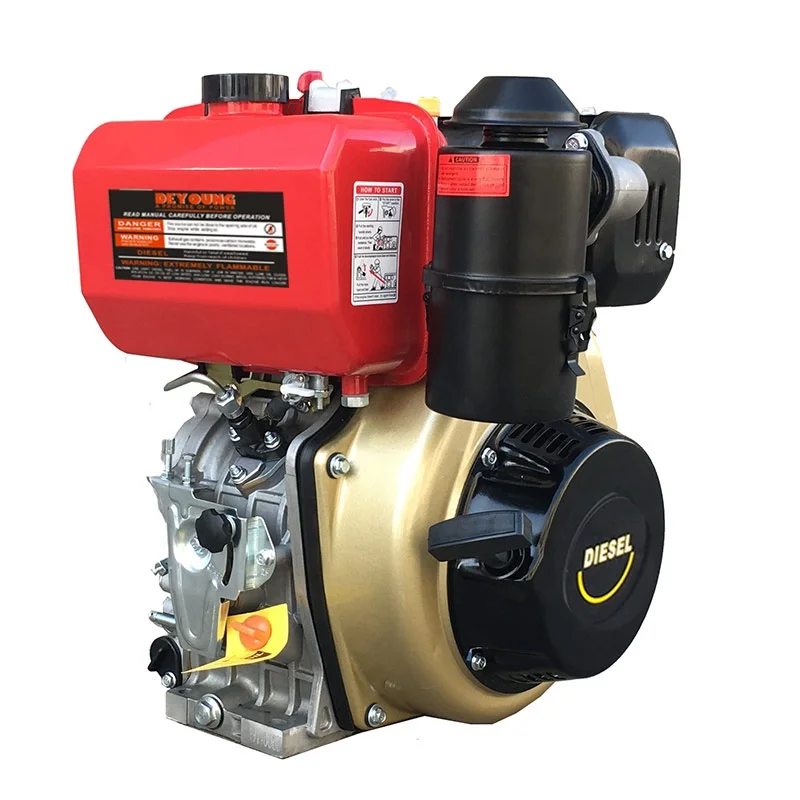

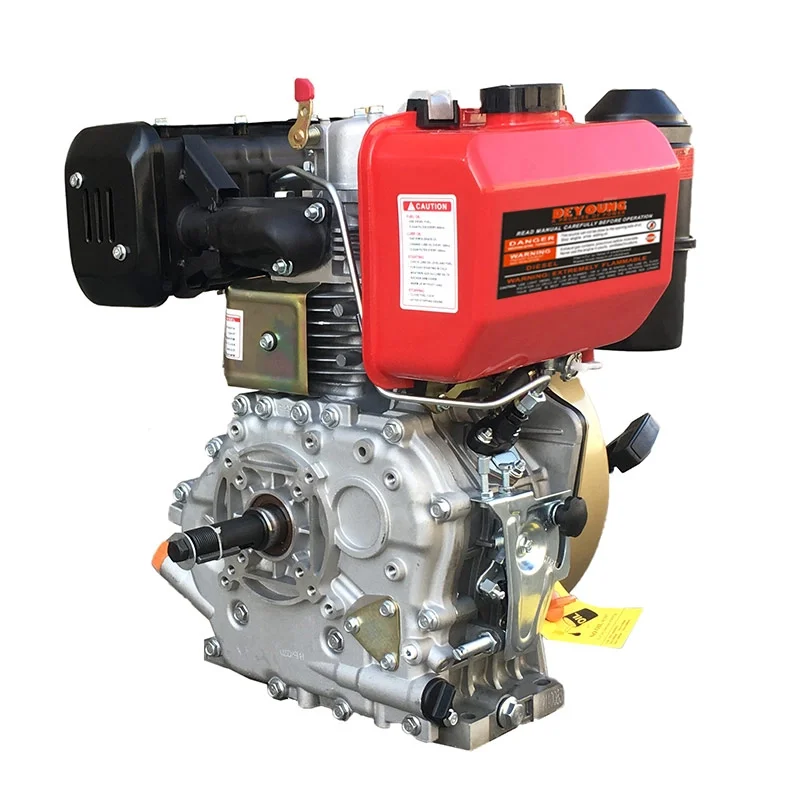

DY186FS(E), DY192FS(E)

DY186FS(E), DY192FS(E)

  • DY186FS(E), DY192FS(E)
  • DY186FS(E), DY192FS(E)

Quantity:

-+
Inquiry
View More
Product Description
DIESEL ENGINE  SPECIFICATION
Model

DY178FS(E)

DY186FAS(E)

DY188FS(E)

DY192FS(E)

Engine TypeSingle Cylinder,Vertical,4 Stroke,Air Cooled
Bore*Stroke78X62mm86X72mm88X75mm92X75MM
Displacement296 cc418 cc456cc498CC
Engine Speed1500/1800RPM
Continuous Output5.0HP/5.5HP8.0HP/9.0HP9.0/10.0HP11HP/12HP
Max.Output5.5HP/6.0HP8.8HP/10.0HP10.0HP/11HP12HP/13HP
Starting SystemManual start Or Electric start
Fuel/Lub.Oil0#In Summer,-10# OR -20# In winter
Lub. OilCD Grade OR SAE10W-30,SAE15W-40
Electric Starting System12V-24AH
Fuel Tank Capacity3.5L5.5L
Lub.Oil Capacity1.1L1.65L1.65L1.7L
POWER TAKE OFFCamshaft output
G.W35KGS50KGS50KGS52KGS
DIM L*W*H470*420*520mm510*455*515MM510*455*515MM515*475*565mm
