| Silent Diesel Generator (Model H Canopy) | ||

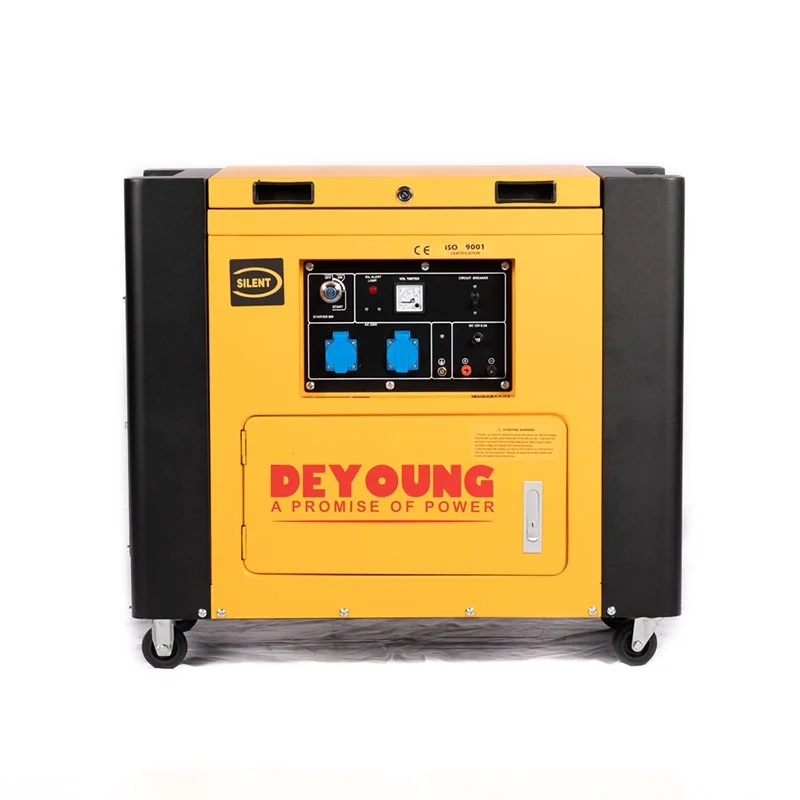

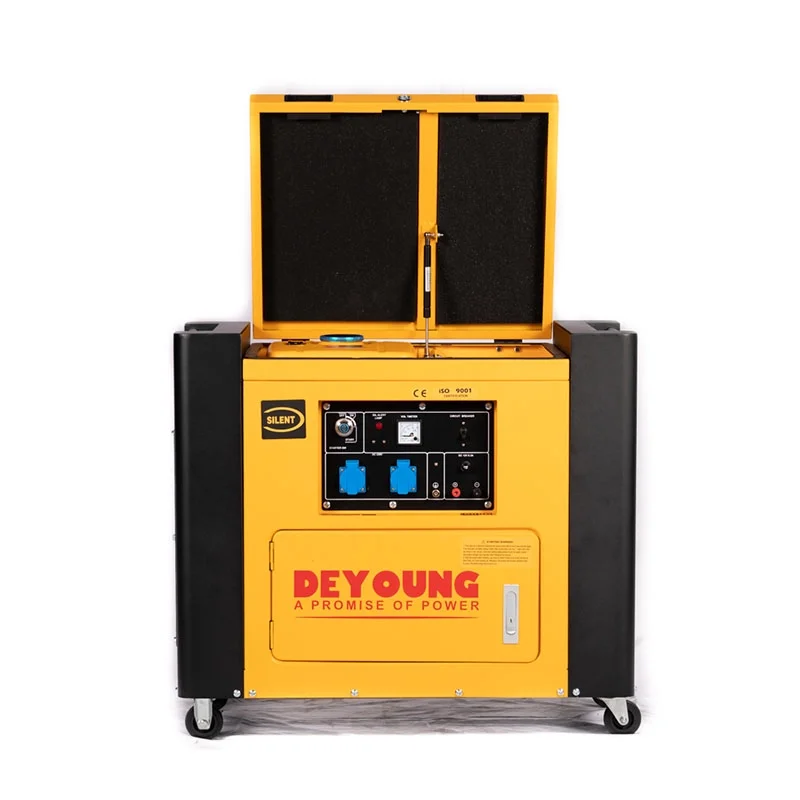

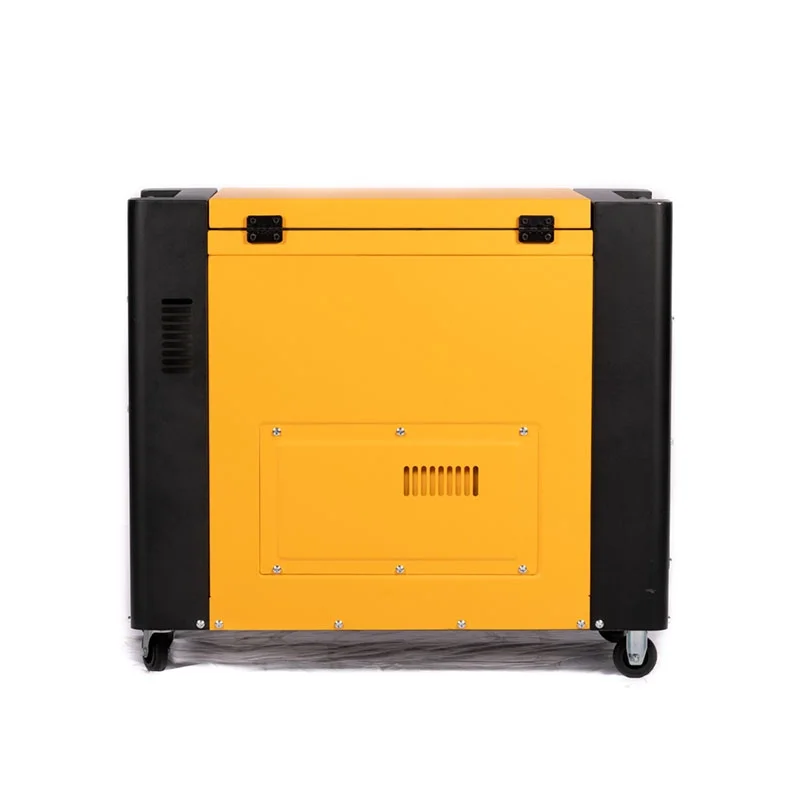

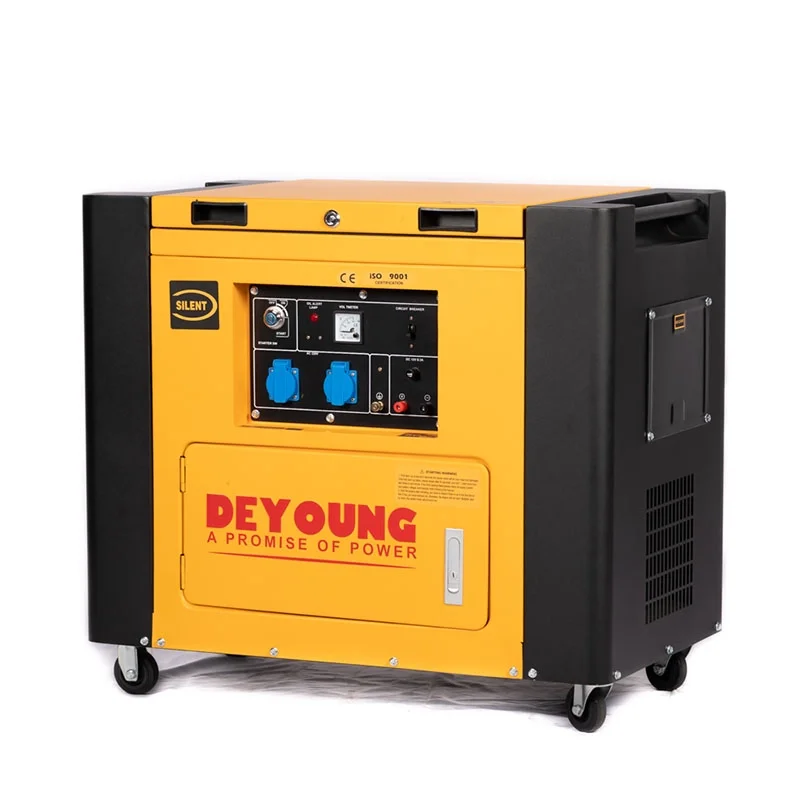

| Model | DY6700LN-H | DY7500LN-H |
| Rated Power (Kw/Kva) | 4.5/5.0 | 5.0/6.0 |
| Max Power (Kw/Kva) | 5.0/5.5 | 5.5/6.5 |
| Rated Frequency(Hz) | 50/60 | |
| Rated Voltage(V) | 110/220V,120/240V,220V,230V,220/380V,230/400V.240/415V | |
| Starting System | Electric start | |
| Engine Model | DY186FA(E) | DY188FE |
| Engine Power | 10HP | 12 |
| Engine Speed | 3000/3600RPM | 3000/3600RPM |
| Displacement (cc) | 418 | 456 |
| Fuel Tank Capacity | 16L | |
| Lub.Oil Capacity | 1.65L | |
| N.W/G.W | 163/168KGS | 164/169KGS |
| Size | 950*550*760MM | |
